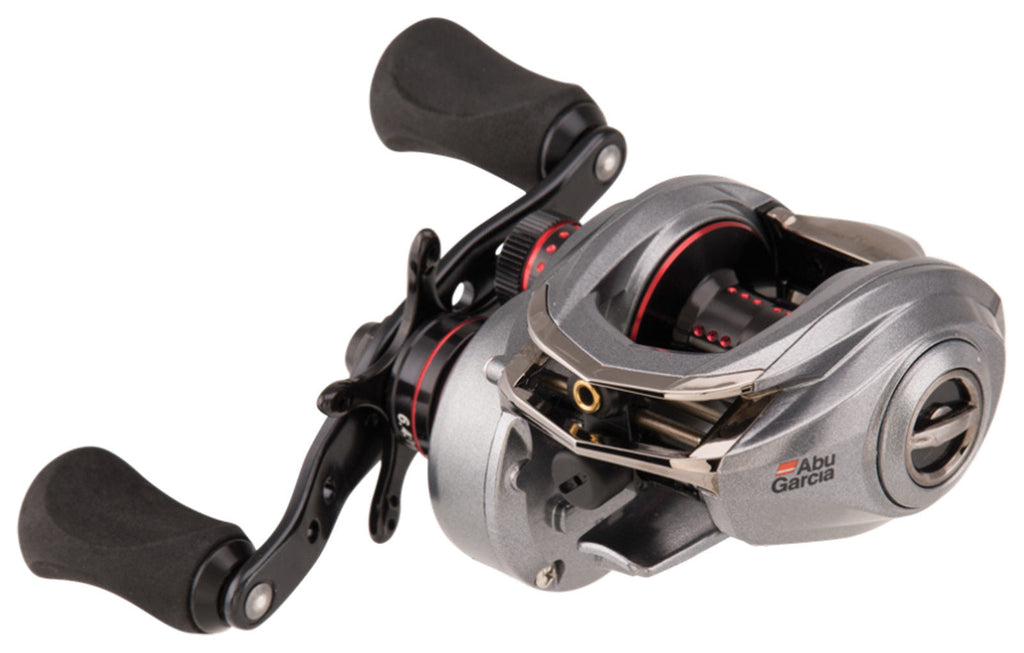

Engineered to give anglers the compact performance of the Revo® MGX® along with the versatility of a heavy-duty fishing reel, the Revo® AL-F low profile reel features an aluminum frame for added strength while the C6 carbon side plates and aluminum main gear allow for maximum weight optimization. Easily adjustable and ultra compact, the Revo® AL-F is suited to throw baits from lightweight finesse baits all the way through to heavy jigs.
- 8 stainless steel HPCR™ bearings + 1 roller bearing
- X2-Cräftic™ alloy frame
- Carbon Matrix™ drag system
- Infini II™ spool design
- Infini™ brake system
- Compact bent handle and star
- Flat EVA knobs
- Aircraft grade aluminum main gear
- Ti coated line guide
- Recessed reel foot
- Lube port
| Model | Gear Ratio | IPT | Bearings | Weight | Max Drag | Mono Capacity |
| REVOAL-F | 6.4:1 | 25" | 9 | 5.65 oz | 17 lbs | 145/10 120/12 105/14 |
| REVOAL-F-L | 6.4:1 | 25" | 9 | 5.65 oz | 17 lbs | 145/10 120/12 105/14 |
| REVOAL-F-HS | 8.0:1 | 32" | 9 | 5.65 oz | 17 lbs | 145/10 120/12 105/14 |
| REVOAL-F-HS-L | 8.0:1 | 32" | 9 | 5.65 oz | 17 lbs | 145/10 120/12 105/14 |
